Product Parameter

name	Equipment Model	Studio Size	Overall dimensions	power	note
Benchtop blast drying oven	DHG-9023A	340×270×320	630×510×490	870W	RT+10℃～250℃
	DHG-9053A	420×340×350	710×590×520	1120W
	DHG-9070A	450×335×450	740×590×630	1570W
	DHG-9140A	550×385×550	840×640×730	2070W
	DHG-9240A	600×500×750	885×780×940	2470W
	DHG-9035A	340×270×320	630×510×490	870W	RT+10℃～300℃
	DHG-9055A	420×340×350	710×590×520	1120W
	DHG-9075A	450×335×450	740×590×630	1570W
	DHG-9145A	550×385×550	840×640×730	2070W
	DHG-9245A	600×500×750	885×780×940	2470W
Vertical blast drying oven	DGG-9030A	330×280×350	445×490×700	550W	RT+10℃～200℃
	DGG-9070A	400×400×450	545×620×800	940W
	DGG-9140A	450×520×550	640×750×900	1390W
	DGG-9240A	500×570×750	690×785×1100	1890W
	DGG-9420A	600×550×1300	840×770×1800	3370W
	DGG-9620A	800×600×1300	1035×825×1800	3970W
	DGG-9036A	300×300×350	445×450×710	550W	RT+10℃～300℃
	DGG-9076A	400×400×450	550×550×800	940W
	DGG-9146A	450×550×550	640×700×900	1390W
	DGG-9246A	500×600×750	690×730×1100	1890W
	DGG-9426A	600×550×1300	770×710×1750	3370W
	DGG-9626A	800×600×1300	970×760×1750	3970W

temperature range	RT+10℃～200℃/ RT+10℃～250℃/RT+10℃～300℃
control accuracy	1%(full scale)
Thermostatic fluctuation	±1℃
Temperature resolution	±0.1℃
heating rate	2.0℃～8.0℃/min
timing range	1-9999M
Outer case material	High quality A3 steel plate electrostatic spraying
Inner box material	Imported high-grade stainless steel SUS304
Insulation material	High-density fiberglass wool
viewing window	Multi-layer insulating tempered glass
temperature sensor	PT100 platinum resistance temperature measurement body
Temperature circulation system	Air-conditioning type American imported fan
standard configuration		Sample racks 2/ 3/ 4 tiers
security protection		Over-temperature protection, fan motor overheating, overall equipment timing, leakage protection Short-circuit protection, overall equipment under-phase/reverse-phase (380V power supply only)
Supply Voltage		AC220V±10% 50Hz 或AC380V±10% 50Hz
operating environment		5℃～＋28℃ ≤85% RH
Note: 1、This technical information, subject to change without notice

Solution

Aerospace

Aerospace vehicles experience extreme temperatures, pressures, vibrations and other environmental conditions during flight. In order to ensure that they can work safely and reliably, material components need to be tested for reliability.

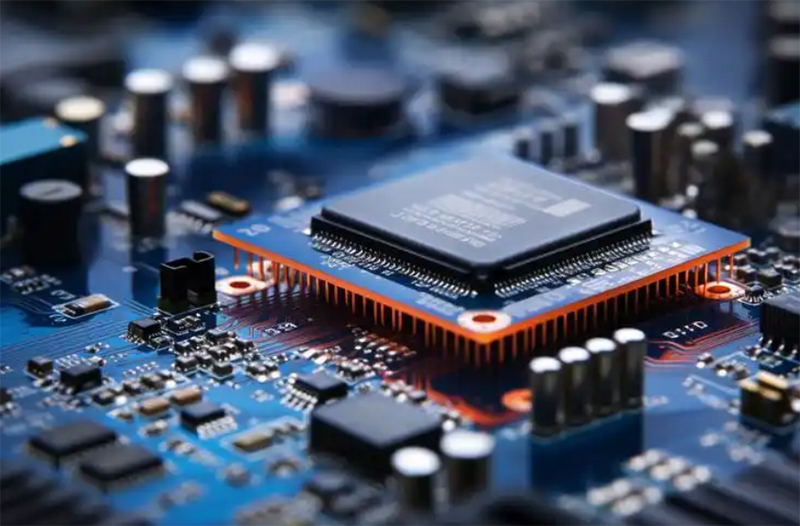

Semiconductor chip

Through the use of LINPIN environmental test equipment, we can comprehensively evaluate the performance of chips under various extreme environmental conditions to ensure that they maintain efficient and stable operation in practical applications. If there is a specific product or test demand, you can choose the appropriate test chamber program according to the actual situation of the customer.

Photovoltaic energy storage

With the rapid development of renewable energy sources, photovoltaic energy storage systems are playing an increasingly important role in the global energy market. These systems need to maintain efficient operation under various extreme environmental conditions. Therefore, environmental testing of PV energy storage systems has become critical. Environmental test chambers provide an ideal platform for simulating various environmental conditions to ensure the performance and durability of PV energy storage systems.

Consumer Electronics

LINPIN can provide the consumer electronics industry, including electronic components, assemblies, and all kinds of finished products, such as: cell phones, tablets, computers, all kinds of wearable devices and other related industry product testing solutions.

New energy vehicles

Automotive vehicle reliability test chamber is widely used in the automotive industry vehicle environment and automotive parts and components enterprises, measurement and testing organizations and scientific research units, etc., the chamber has a high-temperature test, low-temperature test, constant-temperature and constant-humidity test and other comprehensive test conditions, used to measure the performance of the automobile in different temperatures and humidity under the environmental conditions of the performance test, including the cold start, tailpipe emissions, demisting, defrosting test, and so on.
